CL03-30

HVGT  diodes,  high  voltage  diodes,  high  frequency.

• Name:    CL03-30

• Category:   High Frequency HV Diodes

• Peak reverse voltage:   30 VRRM(kV)

• Forward average current:  120 IF(mA)

• Peak forward voltage: 38.0 VFM(V)

• Recovery time: 100 Trr(nS)

• Forward surge current: 20 IFSM(A)

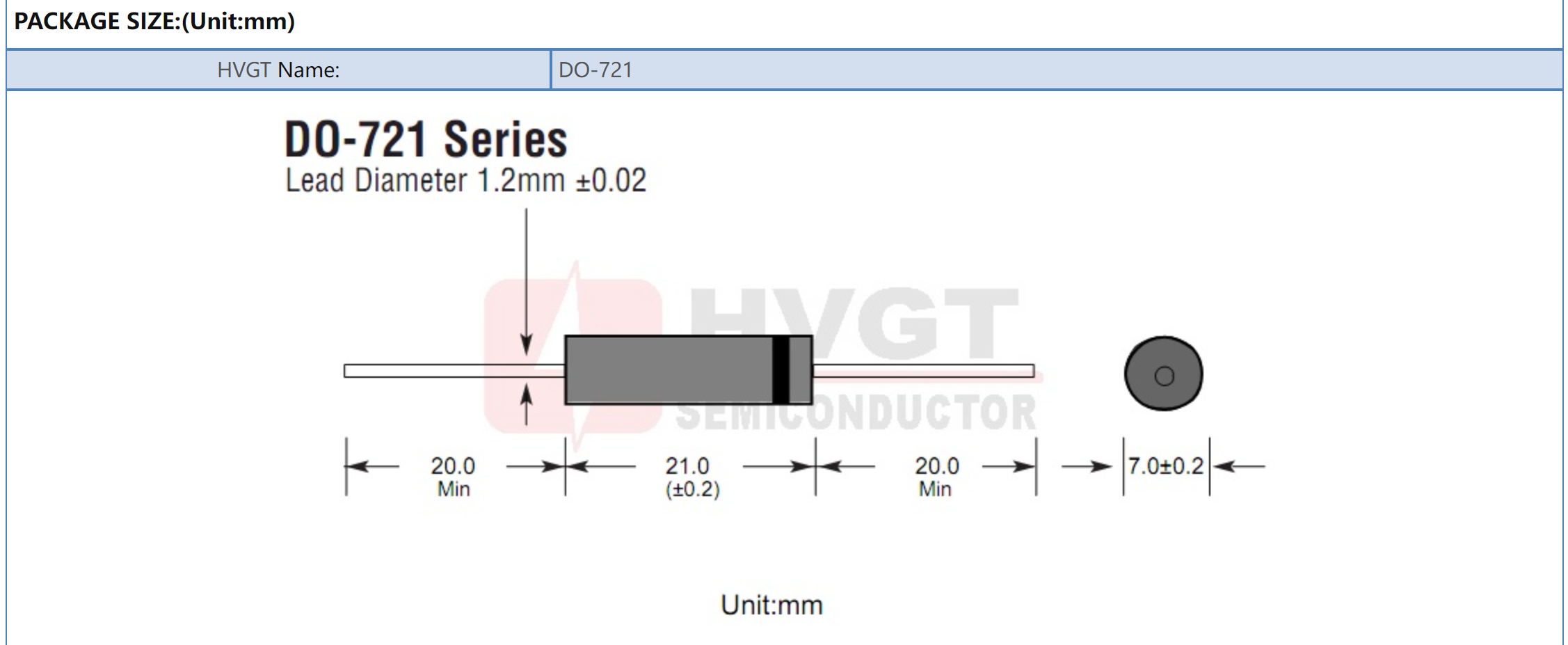

• Dimensions: DO-721
