SM37L25G


SM37L25G,SM37L25G | 100mA | 25kV | 100nS

SM37L25G,SM37L25G | 100mA | 25kV | 100nS


DEVICEDATASHEET

 DEVICE INTRODUCTION:

 Device Name

 Fast Recovery Surface Mount High Voltage Diodes

 Device Type

 SM37L25G

 Simple Data

 100mA   25kV  100nS

 Substitute Type

 --

 Environmental Protection

 RoHS  /  SGS

 Manufacturer

 HVGT Semiconductor

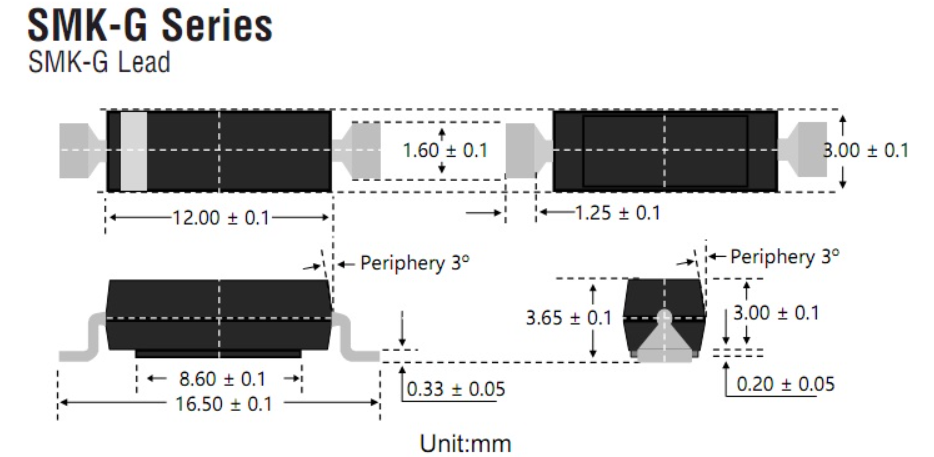

 Net Weight

 0.32 gram (approx)

MAXIMUM RATINGS AND CHARACTERISTICS:  (Absolute Maximum Ratings)

Items

Symbols

Condition

Data Value

Units

 Repetitive Peak Renerse Voltag

VRRM

TA=25°C

25.0

kV

 Non-Repetitive Peak Renerse Voltage

VRSM

TA=25°C

--

kV

 Average Forward Current Maximum

IFAVM

TL=55°C

100

mA

 Average Forward Current Maximum

IFAVM

TOIL=100°C

--

mA

 Non-Repetitive Forward Surge Current

IFSM

TA=25°C; 60Hz Half-Sine Wave; 8.3mS

15

A

 Junction Temperature

TJ


125

°C

 Allowable Operation Case Temperature

TC


-55~+125

°C

 Storage Temperature

TSTG


-55~+175

°C


ELECTRICAL CHARACTERISTICS:  Ta=25°C  (Unless otherwise specified)

Items

Symbols

Condition

Data value

Units

 Maximum Forward Voltage Drop

VFM

at 25°C; at IFAVM

40.0

V

 Maximum Reverse Current

IR1

at 25°C; at VRRM

2.0

uA

 Maximum Reverse Current

IR2

at 100°C; at VRRM

20

uA

 Maximum Reverse Recovery Time

TRR

at 25°C; IF=0.5IR; IR=IFAVM; IRR=0.25IR

100

nS

 Junction Capacitance

CJ

at 25°C; VR=0V; f=1MHz

1.5

pF
