DEVICEDATASHEET

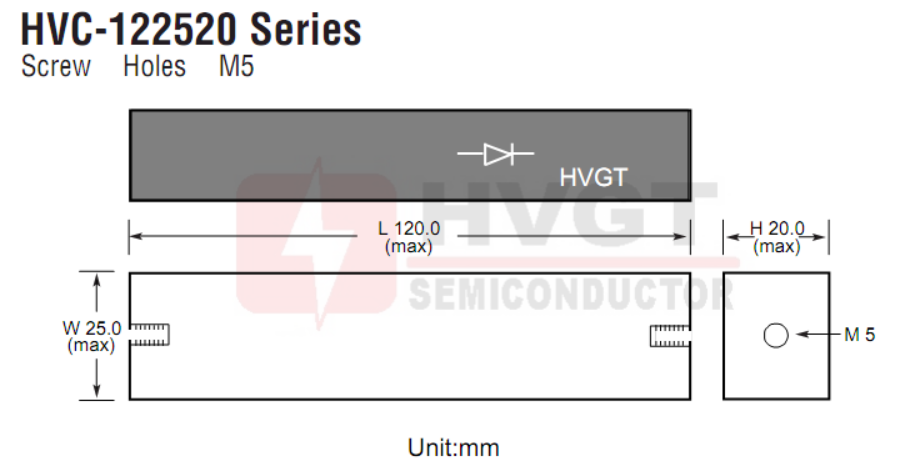

 DEVICE INTRODUCTION:

 Device Name

 Ultra-Fast Recovery High Voltage Rectifier Assembly

 Device Type

 AW010S200U

 Simple Data

 1.0A  20KV  75NS

 Substitute Type

 2CLG20KV/1A    2CLG1020    2CLG20KV1A     2CLG20KV-1A

 Environmental Protection

 RoHS  /  SGS

 Manufacturer

 HVGT Semiconductor

 Net Weight

 85 gram (approx)



MAXIMUM RATINGS AND CHARACTERISTICS:  (Absolute Maximum Ratings)

Items

Symbols

Condition

Data Value

Units

 Repetitive Peak Renerse Voltag

VRRM

TA=25°C

20

kV

 Non-Repetitive Peak Renerse Voltage

VRSM

TA=25°C

24

kV

 Average Forward Current Maximum

IFAVM

TA=25°C

1.0

A

 Average Forward Current Maximum

IFAVM

TOIL=55°C

1.0

A

 Non-Repetitive Forward Surge Current

IFSM

TA=25°C; 50Hz Half-Sine Wave; 8.3mS

20

A

 Junction Temperature

TJ


125

°C

 Allowable Operation Case Temperature

TC


-40~+125

°C

 Storage Temperature

TSTG


-40~+150

°C



 ELECTRICAL CHARACTERISTICS:  Ta=25°C  (Unless otherwise specified)

Items

Symbols

Condition

Data value

Units

 Maximum Forward Voltage Drop

VFM

at 25°C; at IFAVM

28.8

V

 Maximum Reverse Current

IR1

at 25°C; at VRRM

5.0

uA

 Maximum Reverse Current

IR2

at 100°C; at VRRM

50

uA

 Maximum Reverse Recovery Time

TRR

at 25°C; IF=0.5IR; IR=IFAVM; IRR=0.25IR

75

nS

 Junction Capacitance

CJ

at 25°C; VR=0V; f=1MHz

--

pF
